Carsanbo 6 Inch IPS Touch Screen Blind Spot Monitoring System Car Side Rearview Mirror Camera 720P WDR DVR Function

SM603 product specifications (only looking at the left and right rear view images of the car):

This side electronic rearview mirror is a regular model with burning function and does not have AI BSD function
1) 6-inch IPS panel display
2) Touch screen control
3) Panel pixel: 1560 * 720P
4) Brightness: 600cd/m2
5) Automatically adjust screen brightness based on time settings
6) Built in DVR function

7) Camera input interface: Mini 4PIN
8) CH2 is used for side rear camera lens input
9) Power supply: cigarette lighter power supply DC12V-24V

10) Camera pixel: 720P with wide dynamic function
11) Camera waterproof rating: IP68

12) Horizontal angle: rear lens 120 degrees, no front lens

13) Camera sensor: 204 WDR
14) Camera installation type: double-sided tape pasted on the car fender
15) Display installation type: pasted on the left and right instrument panels of the car.

The display screen is made of all aluminum ultra-thin body, with sufficient heat dissipation performance to ensure product stability and durability. The camera is versatile in the original car style, and the ultra-thin double track flat wire makes installation easier and more beautiful. The defogging and water removal design effectively reduces the accumulation of lens water droplets during high-speed driving.

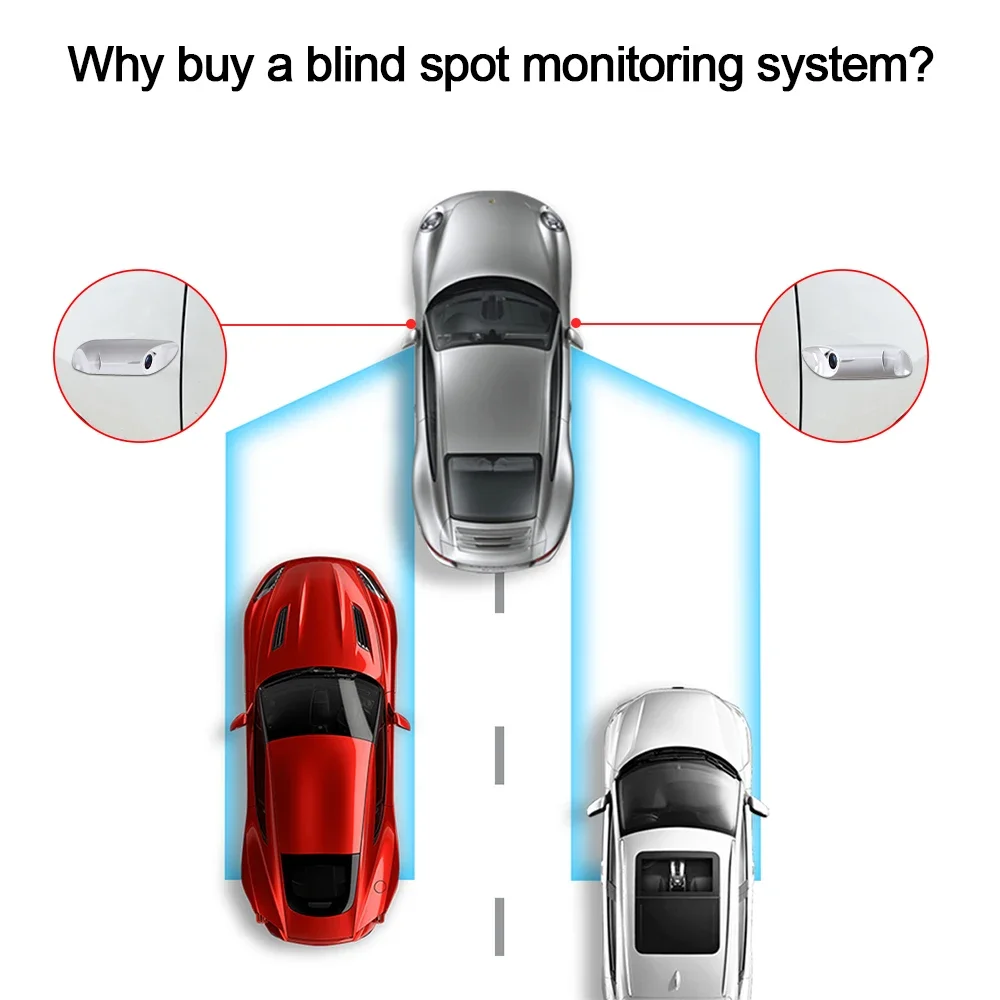

1.Why buy a blind spot monitoring system?

As is well known, there are significant visual blind spots on the left and right sides of cars. During normal driving, the visual range provided by the physical rearview mirror is very limited. When the vehicle changes lanes, there are certain safety hazards. However, through the external camera installed in this system, a large angle of view is provided, which compensates for the narrow visual range of the physical rearview mirror. The display can also record videos .

2.Product features

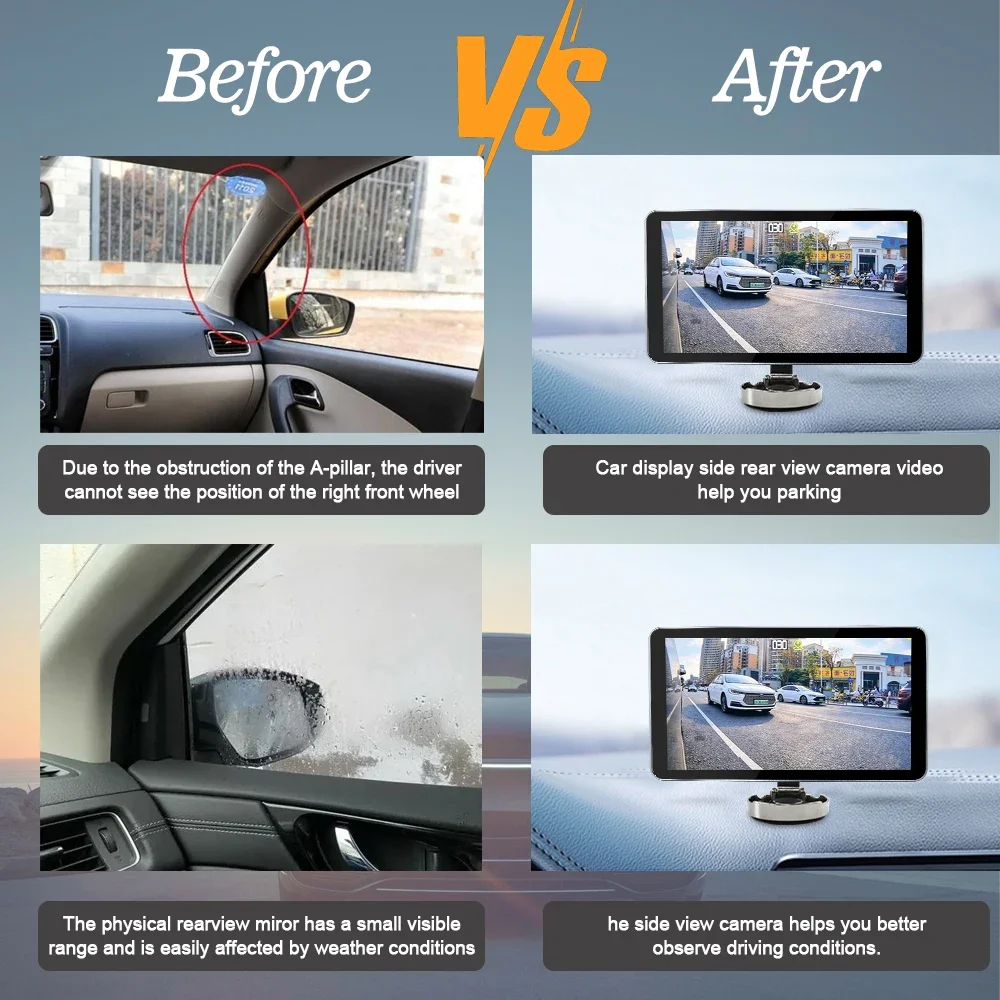

3.Comparison before and after car installation

4. Image adjustment function
The camera's image can be adjusted up, down, left, right to a suitable viewing angle

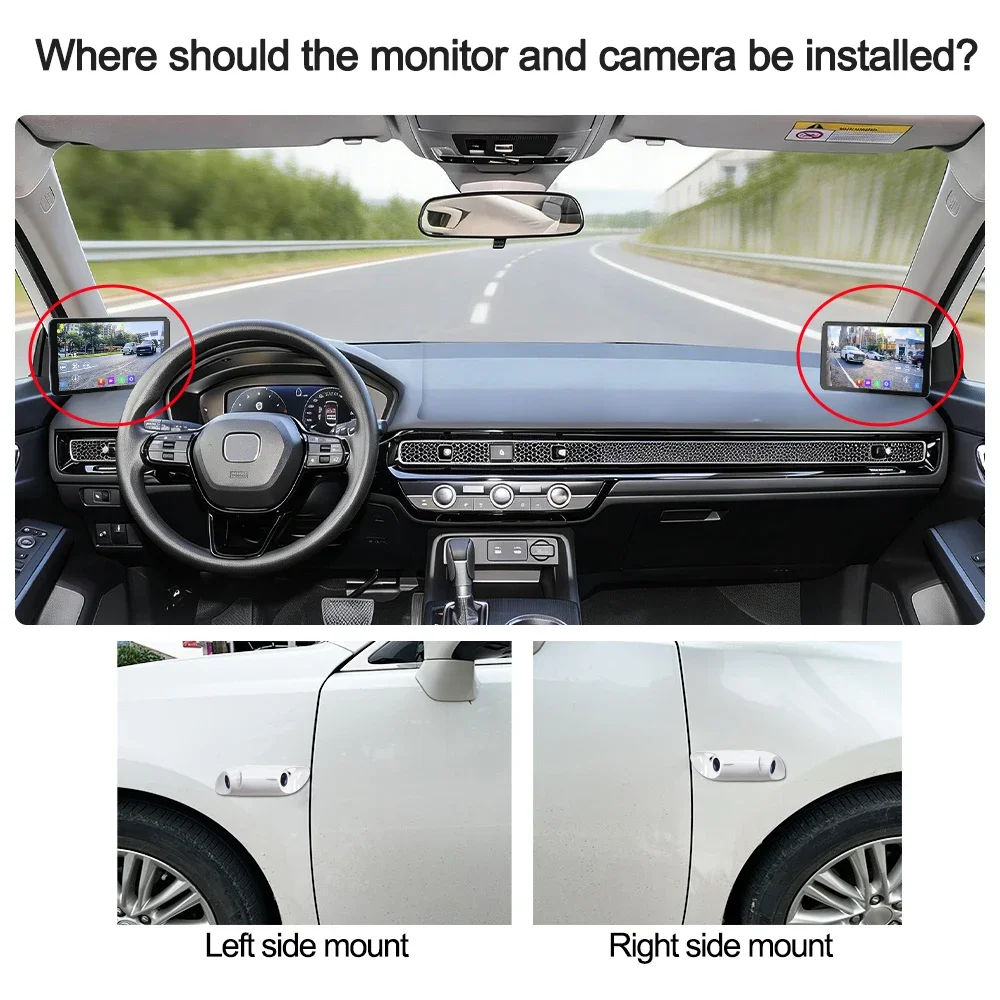

5.Where should the monitor and camera be installed?
The left and right displays are equipped with a detachable rotating bracket that can be installed near the AB pillar in the cab. The exterior camera can be attached to the car fender (slightly above the height of the wheels) with double-sided tape, and the camera cable can be inserted into the cab through the door gap to connect with the display The camera power is supplied by the monitor, and the monitor power is supplied by the car cigarette lighter

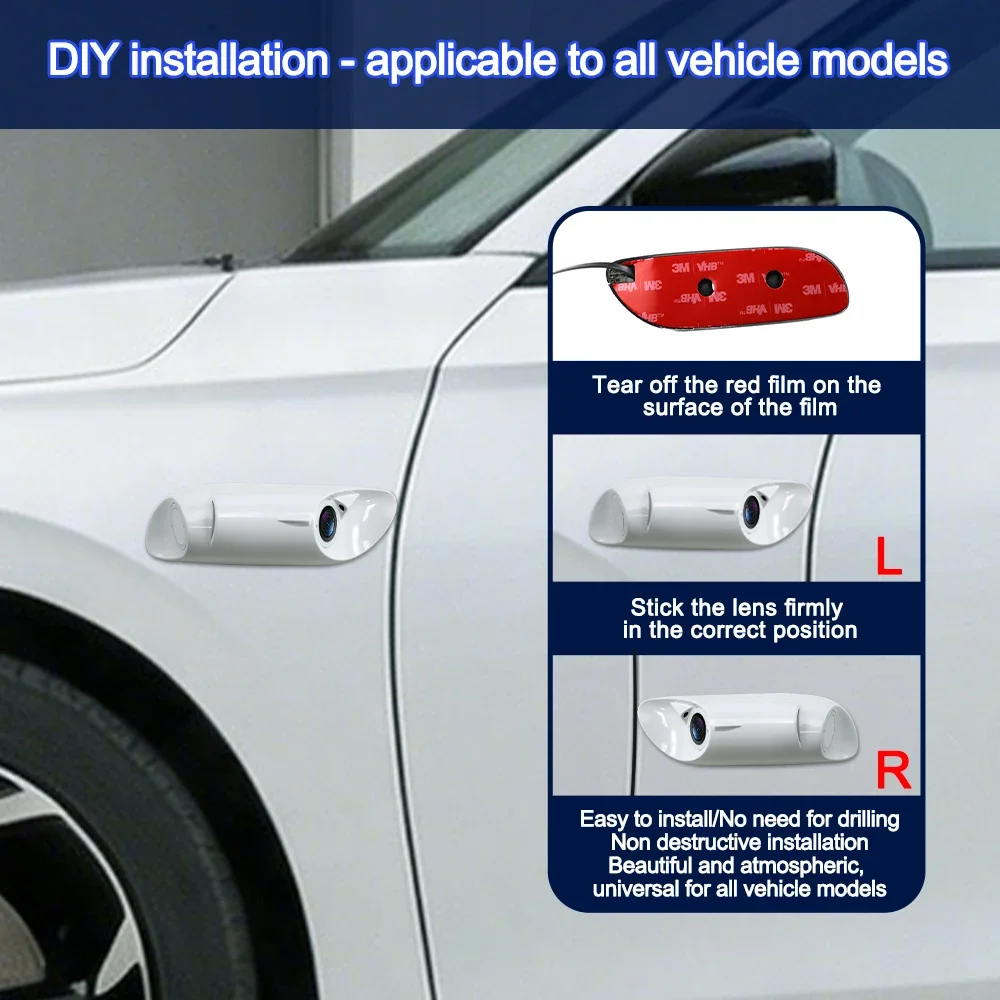

5.1 Installation of left and right cameras

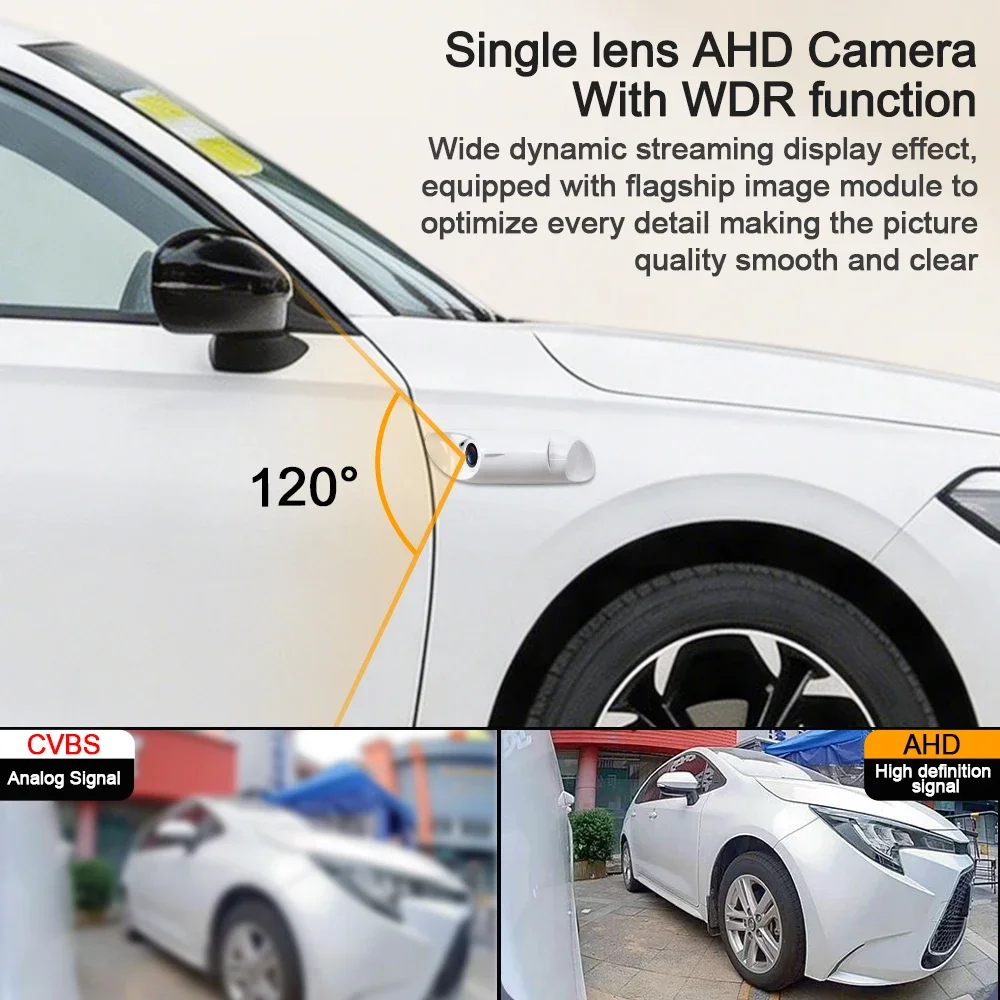

5.2 Wide dynamic chip, no longer affected by the lights of oncoming vehicles at night

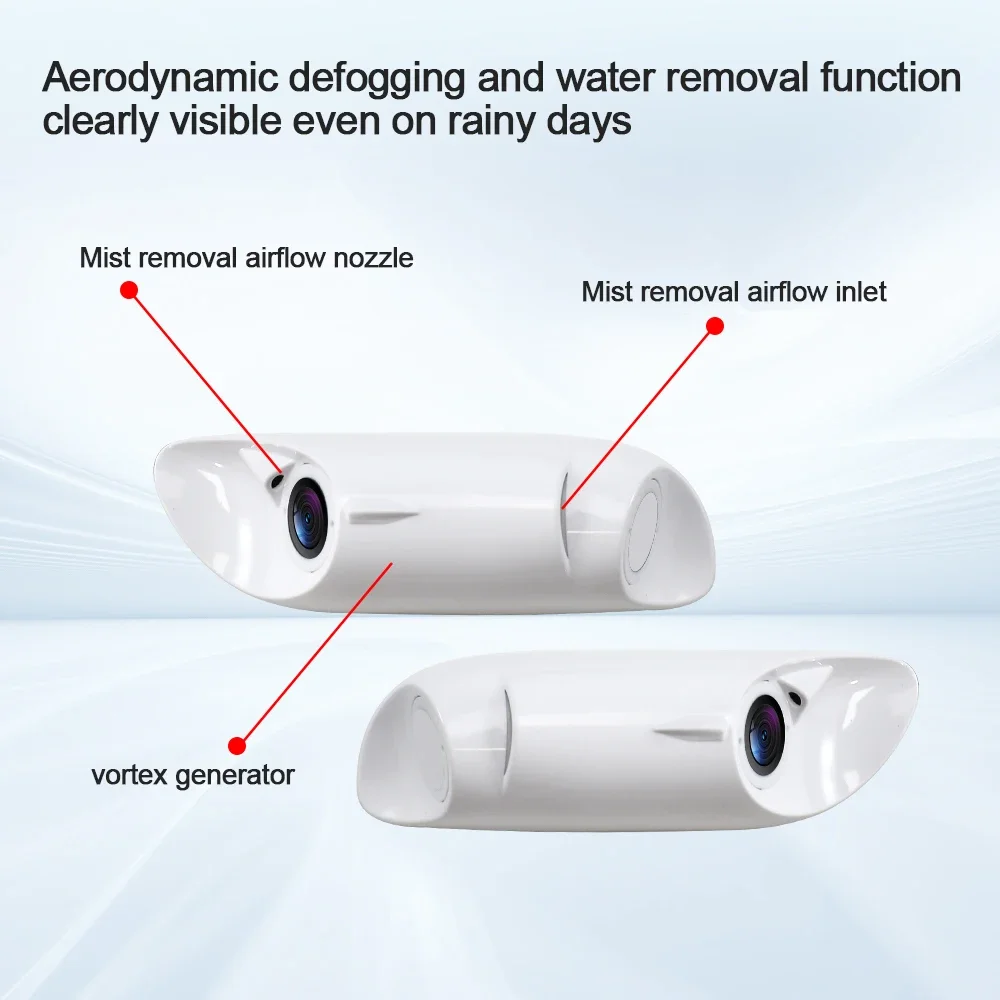

6.The unique appearance design of the camera ensures that it is not affected by rain even on rainy days.
The camera housing is designed with a vortex generator to reduce the phenomenon of high-speed airflow vortex streets during rainy days and minimize water droplet retention in the rotating lens. The airflow ventilation duct is designed to effectively separate water and steam, and the defogging airflow nozzle effectively reduces water droplet retention on the lens surface

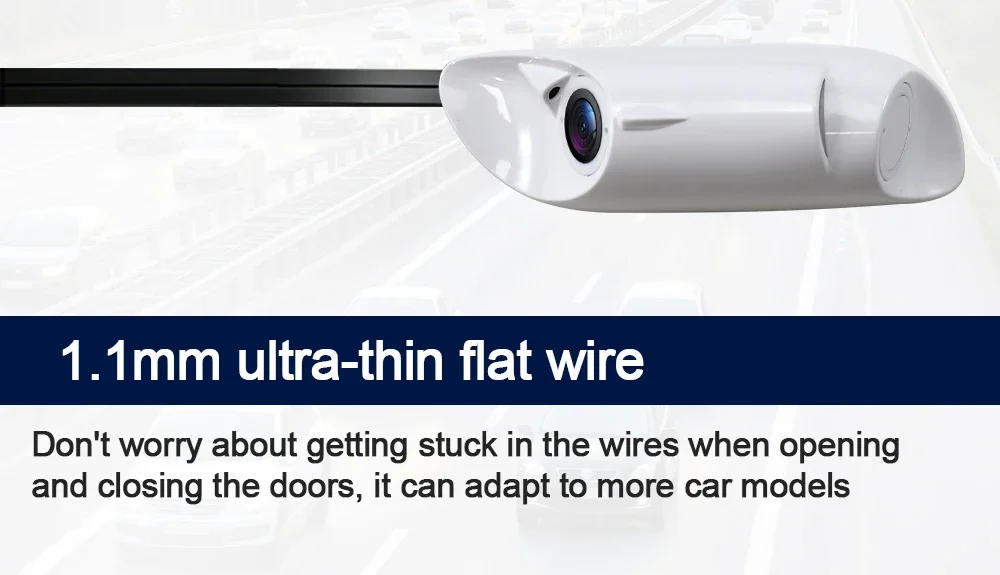

7. The camera cable features an ultra-thin dual track flat cable design, with a thickness of only 1.1 millimeters
The camera cable can easily pass through the door gap, without worrying about damaging the cable when opening or closing the door, and can be adapted to more car models

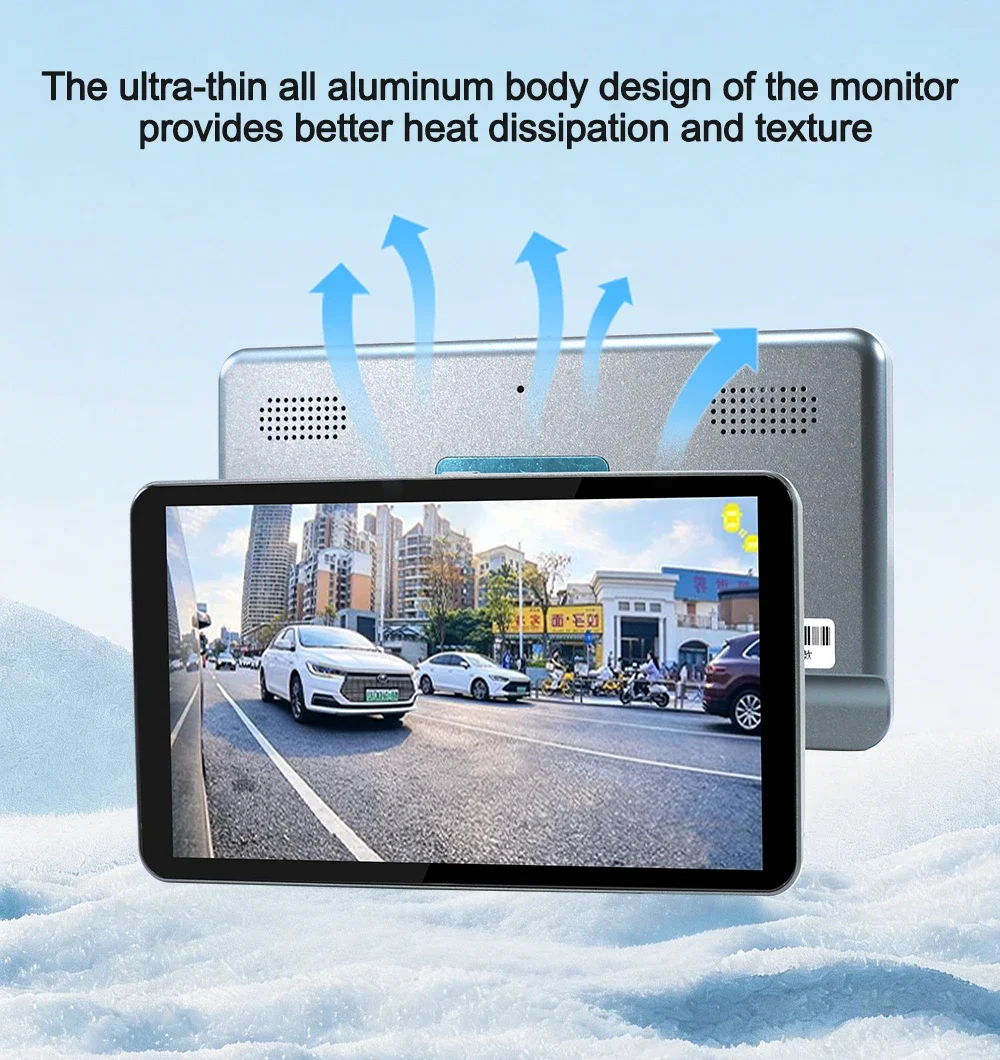

8. The ultra-thin all aluminum body design of the monitor provides better heat dissipation and texture

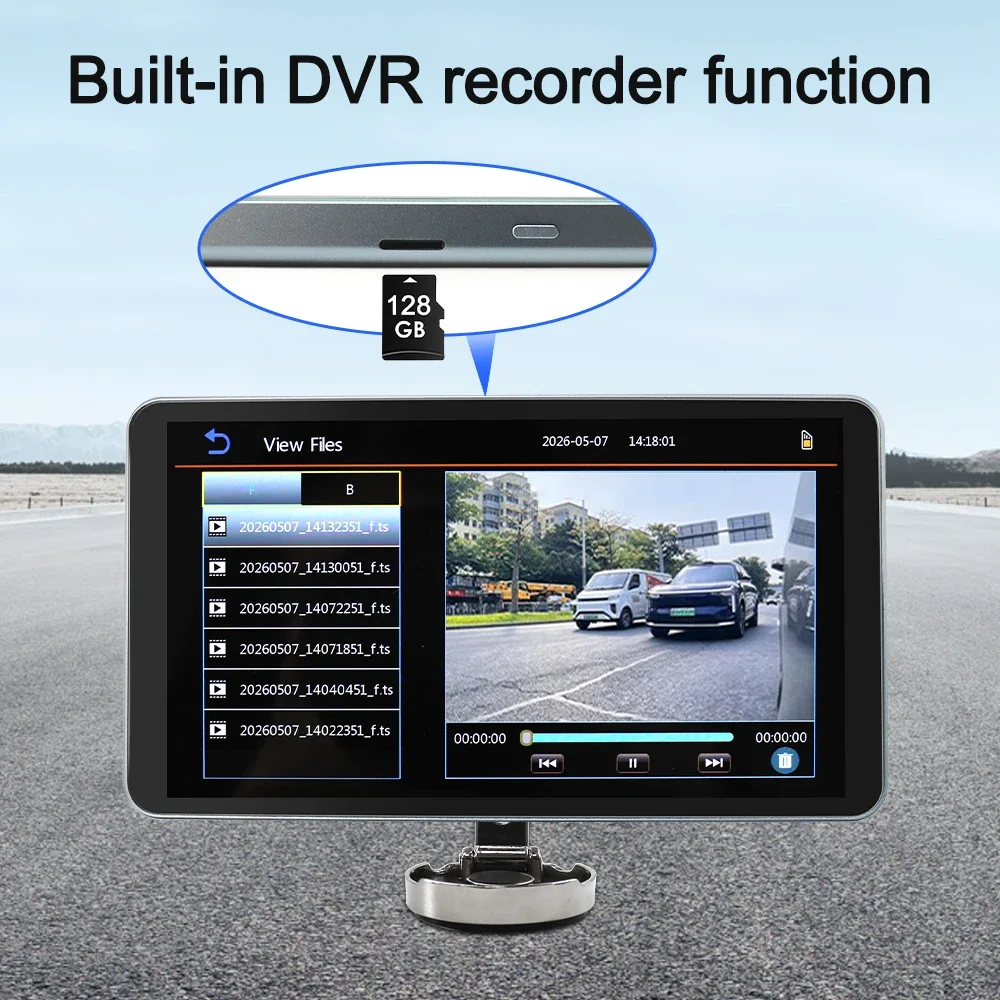

9. The screen supports simultaneous recording of two channels and allows for viewing and playback of recorded footage
The monitor can be inserted with a TF C10 storage card and can support up to 128GB of memory. The monitor has a built-in microphone that can record sounds inside the car (it can be turned off if not needed)

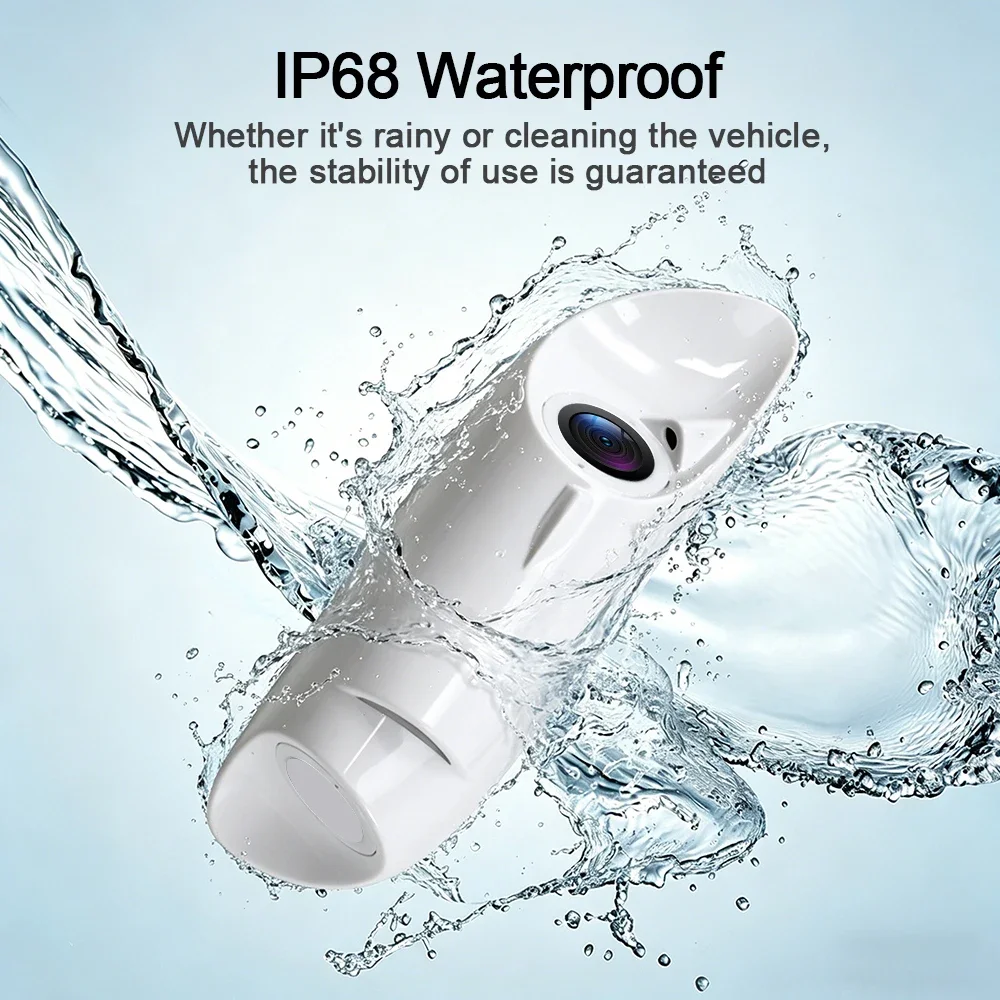

10. Camera waterproof rating: IP68, ensuring stability in use whether it's rainy or cleaning the vehicle

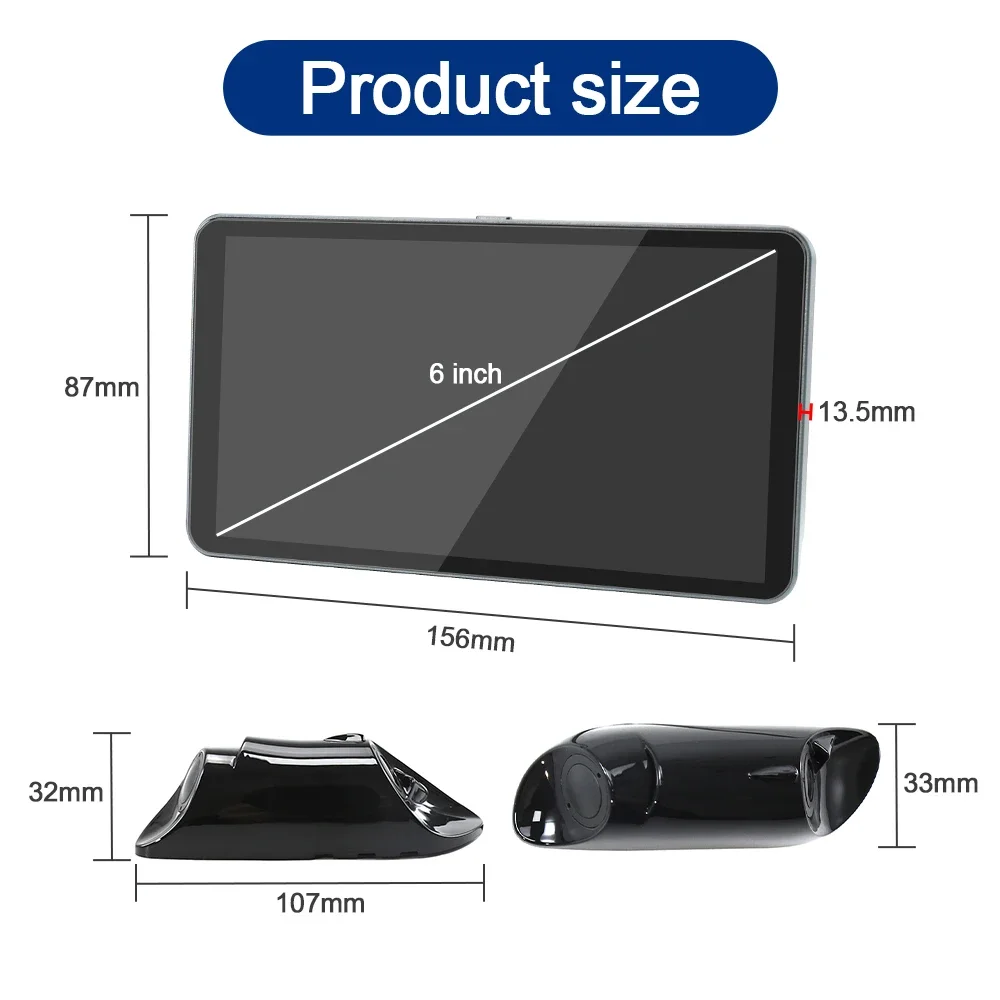

11.Display and camera size chart

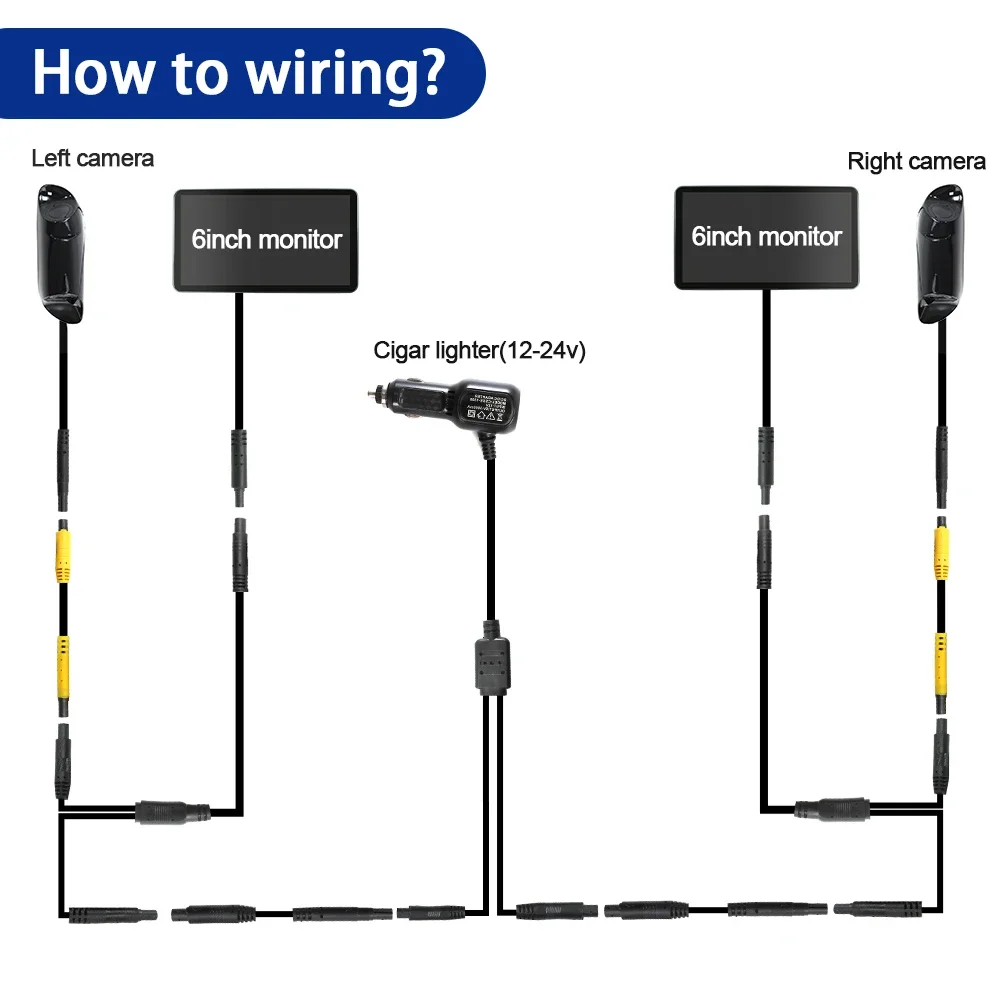

12.Product wiring diagram

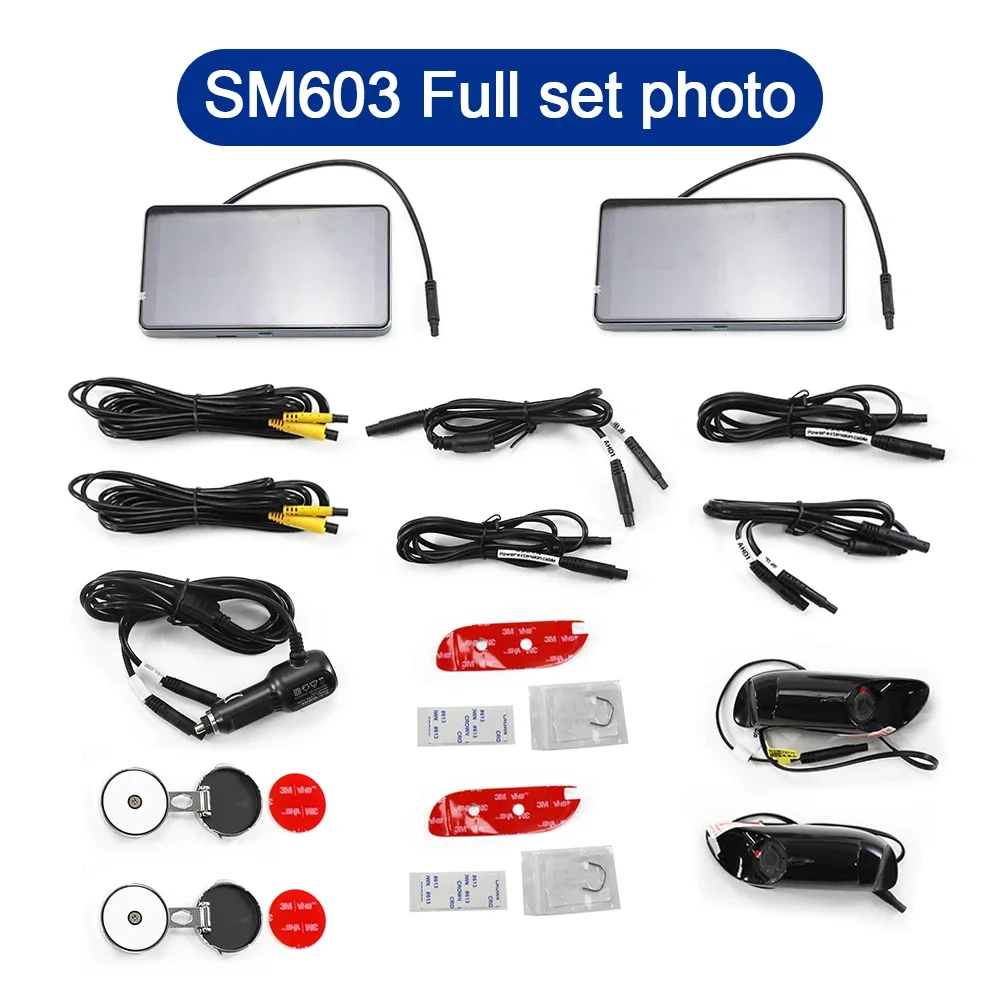

16.Family photo of the product
